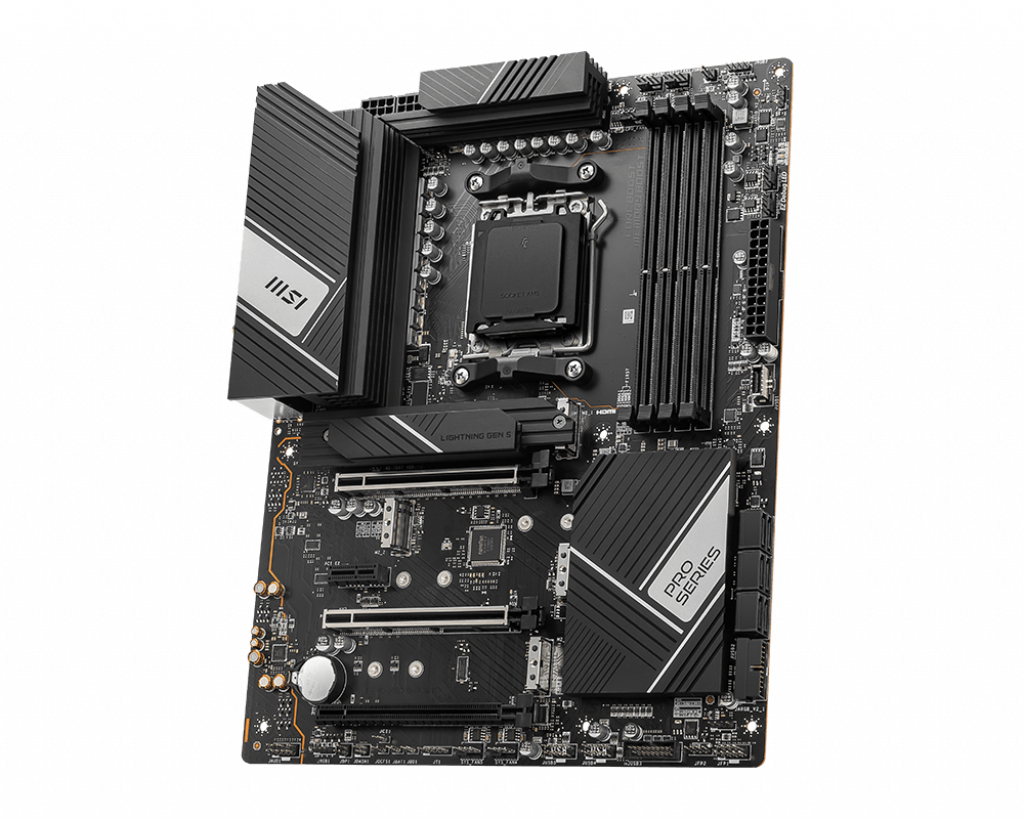

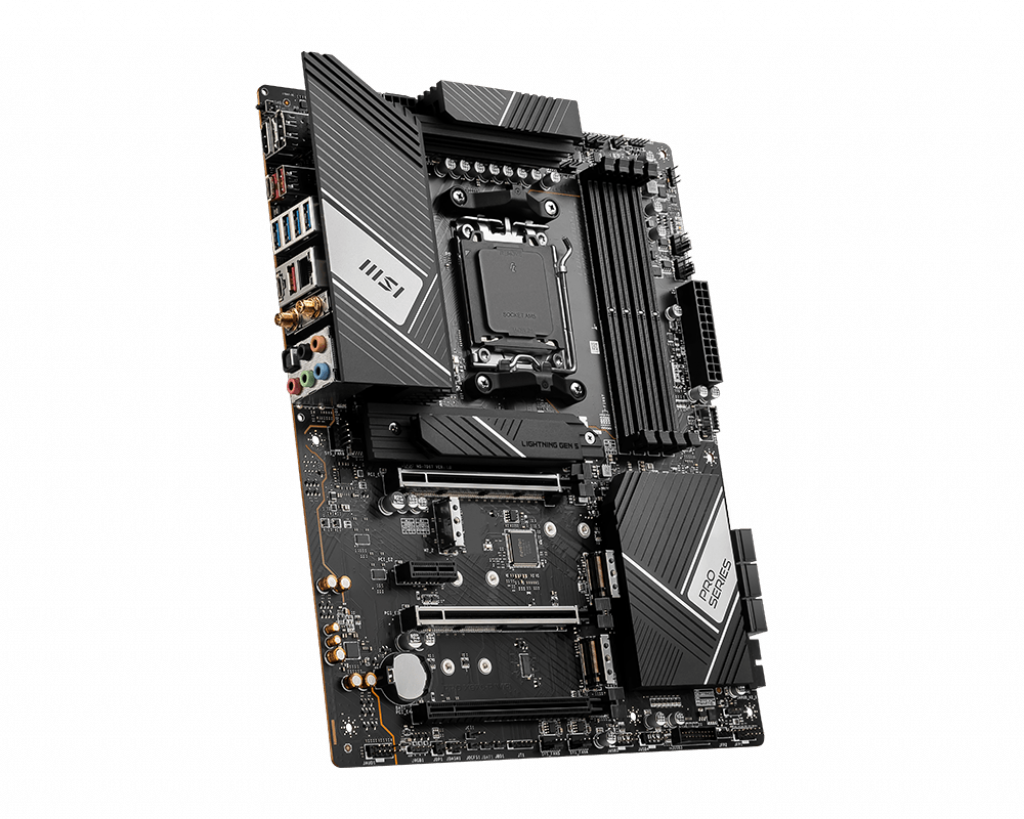

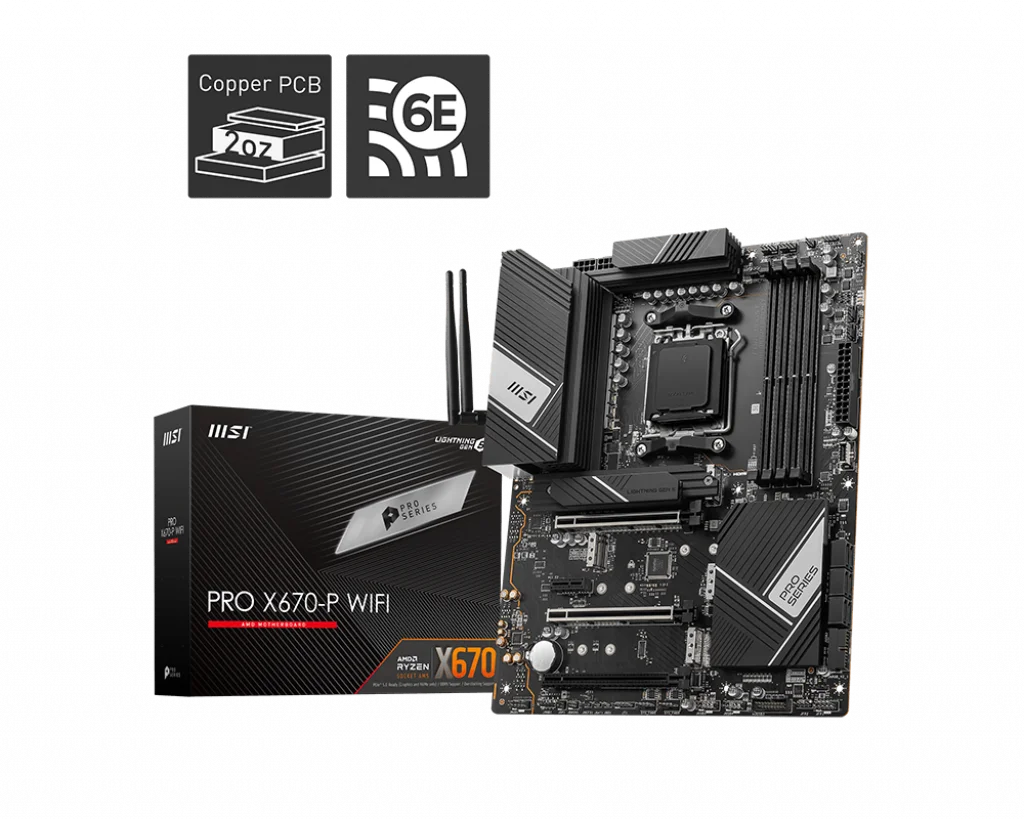

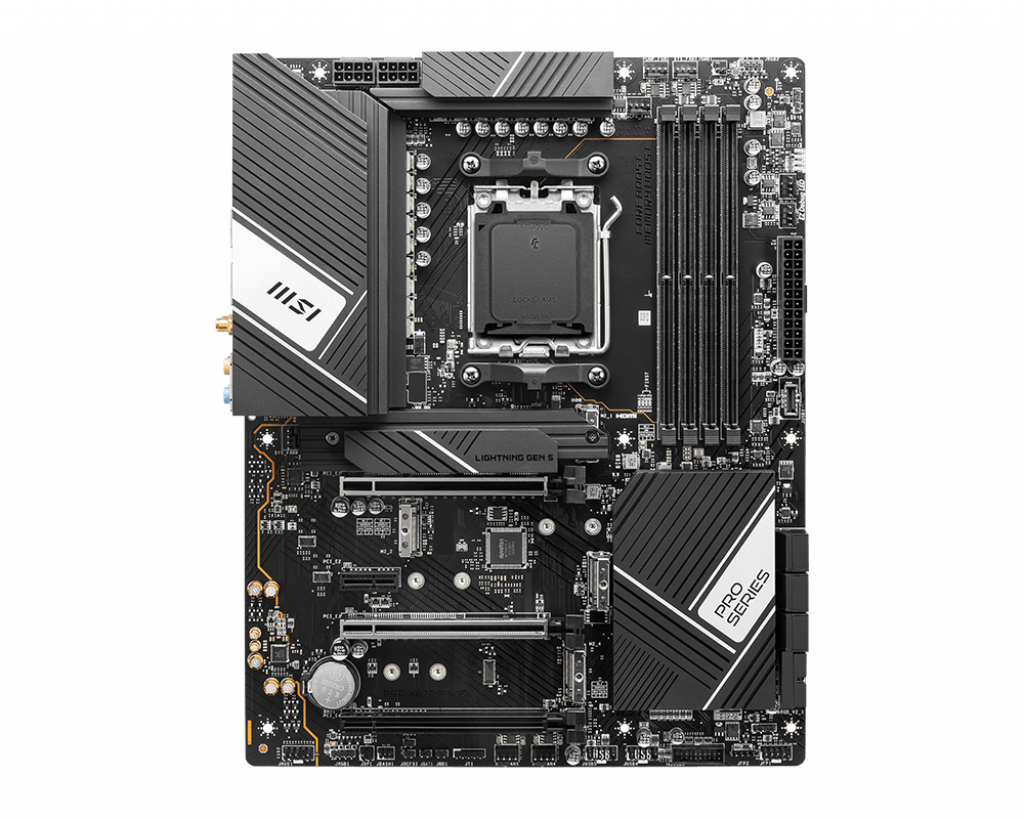

MSI PRO X670-P WIFI

Chipset AMD X670 CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 Memory 4x DDR5, Maximum Memory Capacity 128GB Onboard Graphics 1x HDMI™ Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz* 1x Display Port Supports DP1.4, maximum resolution of 4K 60Hz* 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From CPU) PCI_E4 PCIe 4.0 supports up to x2 (From Chipset) STORAGE 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices* Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *SATA_A1 & SATA_A2 do not support RAID function. LAN Realtek® RTL8125BG 2.5G LAN WIRELESS / BLUETOOTH AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. USB 4x USB 2.0 ports (Front) 4x USB 3.2 Gen1 Type A ports (Rear) 4x USB 3.2 Gen1 Type A ports (Front) 2x USB 3.2 Gen2 Type A ports (Rear) 1x USB 3.2 Gen2 Type C ports (Rear) 1x USB 3.2 Gen2 Type C ports (Front) 1x USB 3.2 Gen2x2 Type C ports (Rear) Audio Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel Internal I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports LED FEATURE 4x EZ Debug LED BACK PANEL PORTS DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) S/PDIF-OUT OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit PCB Dimension ATX 243.84mmx304.8mm
