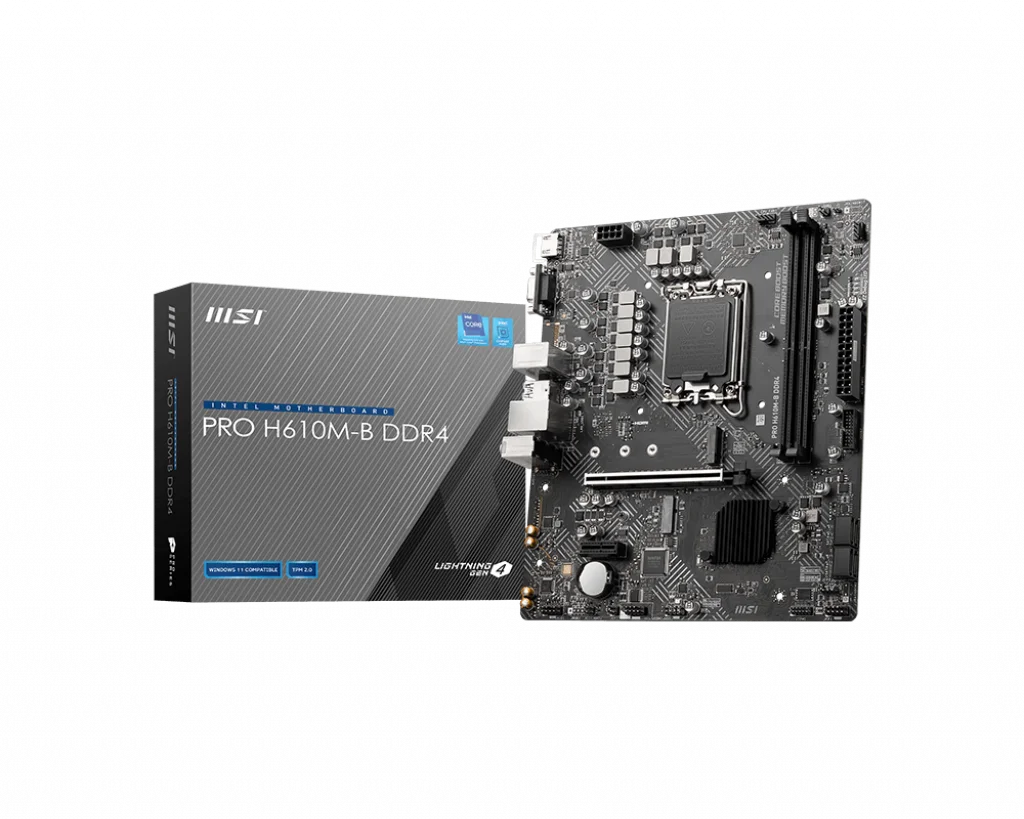

MSI PRO H610M-B DDR4

Opraveno servisem výrobce Processor Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released. Chipset Intel® H610 Chipset Memory 2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to www.msi.com for more information on compatible memory. Expansion Slot 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1) Onboard Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. SATA Ports 4x SATA 6Gb/s ports1 SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. M.2 SSD Slot 1x M.2 slot (Key M, from chipset) 1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot Audio Realtek® ALC892/ ALC897 Codec 7.1-Channel High Definition Audio LAN 1x Intel® I219V 1Gbps LAN controller Power Connectors 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector USB Intel® H610 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) Fan Connectors 1x 4-pin CPU fan connector 1x 4-pin System fan connector System Connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector Jumpers 1x Clear CMOS jumper LED Features 4x EZ Debug LED Back panel ports HDMI VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 Dimensions M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
