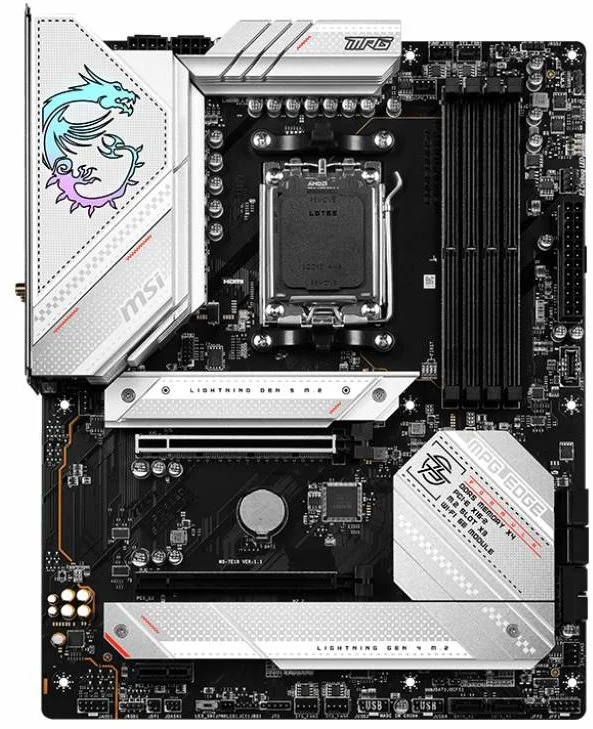

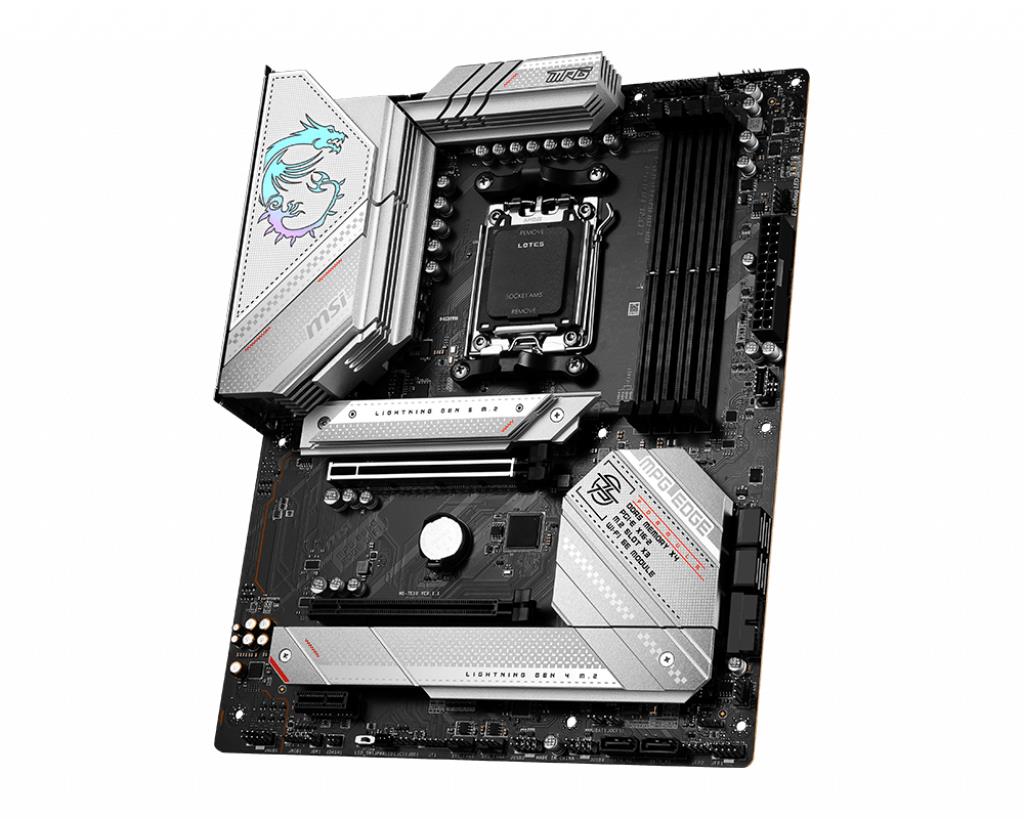

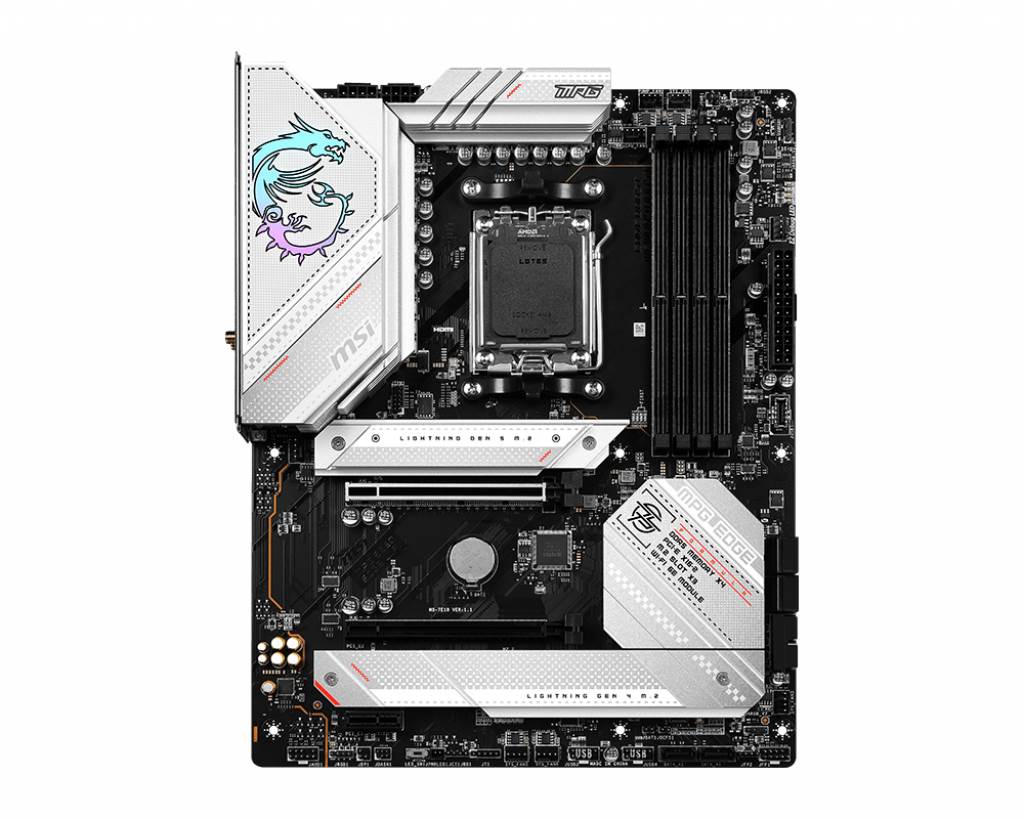

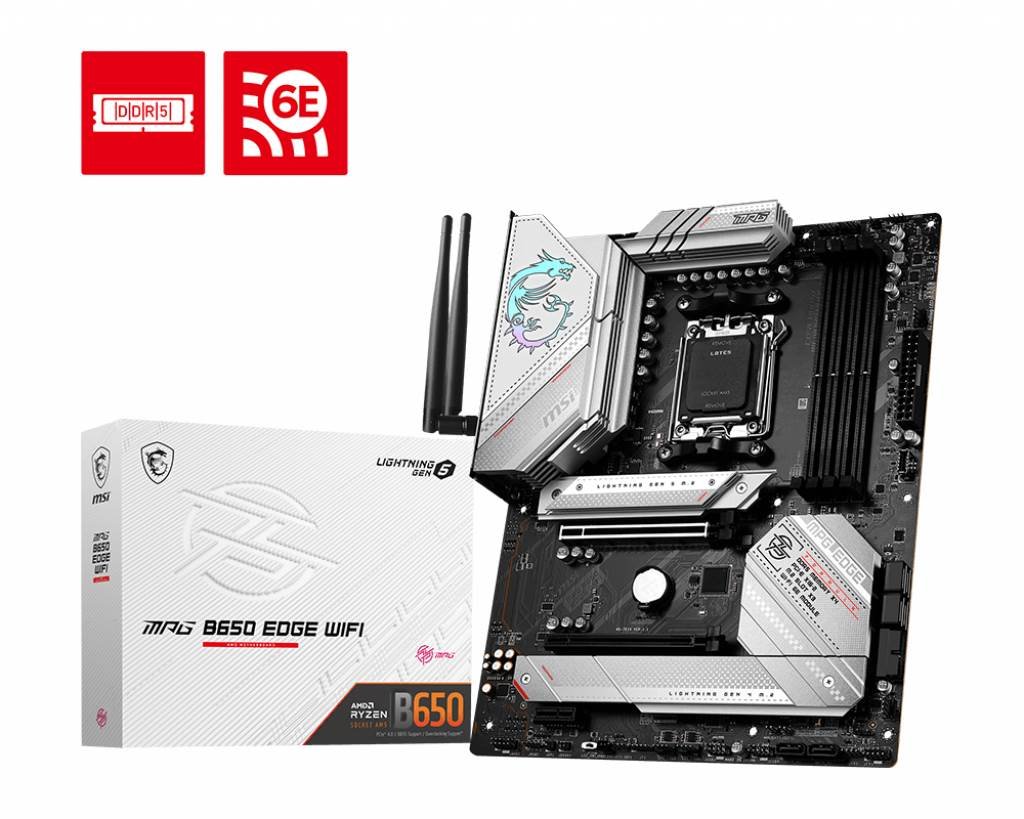

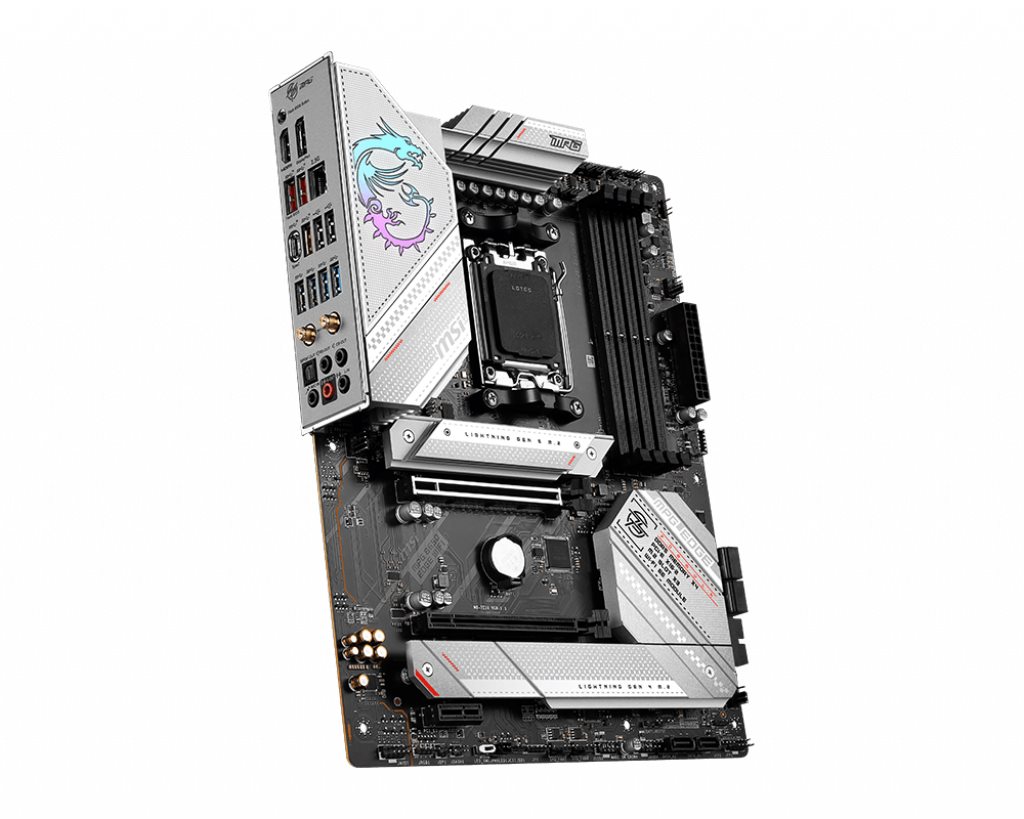

MSI MPG B650 EDGE WIFI

Objednací kód: 8998120,Part No.: MPG B650 EDGE WIFI,Záruka spotřebitel/ostatní: 36 měsíců / 36 měsíců

Doprava zdarma
Loading...

základní deska, MPG B650 EDGE WIFI, AMD B650, AM5, 4x DDR5 DIMM (max. 128GB), PCIe 4.0, 3x M.2 (1x Gen5), HDMI, DP, USB-C, 2,5 GBit LAN, WiFi 6E, BT5.2, ATX

6 751 Kč
5 579 Kč bez DPH
Loading...

Popis

MPG B650 EDGE WIFI Supports AMD Ryzen™ 7000 Series Desktop Processors Supports DDR5 Memory, up to 6600+(OC) MHz Enhanced Power Design: DRPS 14+2+1 VRM power, Core Boost, Memory Boost Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2 DIY Friendly Design: Flash BIOS Button, Pre-installed I/O Shield, Steel Armor AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience CHIPSET AMD B650 CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 MEMORY 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max. speed up to 6600+ MHz • 1DPC 2R Max. speed up to 6000+ MHz • 2DPC 1R Max. speed up to 6400+ MHz • 2DPC 2R Max. speed up to 4000+ MHz Support Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ ONBOARD GRAPHICS 1x HDMI™ 1x DisplayPort Support HDMI™ 2.1 FRL, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. EXPANSION SLOT 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x2 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) STORAGE 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function. USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) LAN Realtek® RTL8125BG 2.5Gbps LAN WIRELESS / BLUETOOTH AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. AUDIO Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel INTERNAL I/O 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C LED FEATURE 4x EZ Debug LED 1x EZ LED Control switch BACK PANEL PORTS Display Port 2.5G LAN USB 2.0 (Type-A) Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) Optical S/PDIF Out OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit PCB DIMENSION ATX 243.84mmx304.8mm

Více informací

Společnost MSI (Micro-Star International Co., Ltd) je tchajwanská multinárodní firma s tradicí od roku 1986. Zaobírá se vývojem a výrobou výhradně herního počítačového hardwaru jako jsou notebooky, All-in-one počítače, základní desky, grafické karty, monitory a gaming gear. Odhodlání neustále inovovat technologie a vylepšovat design učinilo značku MSI opravdovým hráčem ve světě gamingu. Skuteční hráči ocení integrovaný extrémní výkon, realistický obraz, autentický zvuk, přesné ovládání a plynulé streamovací funkce.
Stránky výrobce: cz.msi.com
MSI

Další produkty značky MSI

Parametry

Sběrnice
Počet PCI-Express ×1:1
Počet PCI-Express ×16:2
PCI-Express 4.0:ano
PCI Express x16:ano
PCI Express x1:ano
Určení
Herní:ano
Základní parametry
Socket (patice) procesoru:AM5
Chipset:AMD B650
Formát:ATX
Počet paměťových slotů:4
Max. velikost operační paměti [GB]:128
Funkce a technologie
Wi-Fi:ano
Operační paměť
Provedení operační paměti:DIMM
Typ operační paměti:DDR5
Počet slotů pro paměti:4
Režim zapojení pamětí:Dual-channel
Max. velikost operační paměti [GB]:128
Max. podporované frekvence paměti [MHz]:6600
Technologie
Wi-Fi:ano
Podsvícení:ano

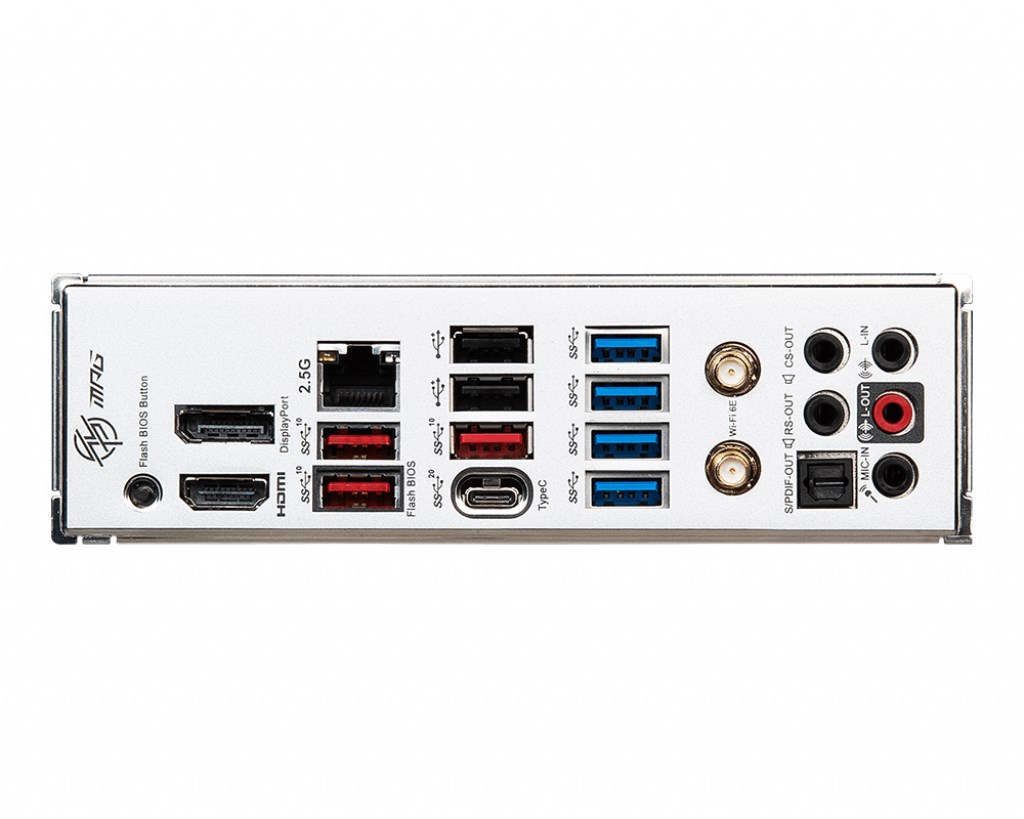

Porty externí
HDMI výstup:ano
Počet HDMI výstupů:1
USB 2.0:ano
Počet portů USB 2.0:2
USB-C:ano
USB 3.0:ano
Počet portů USB 3.0:2
Počet portů USB 3.0:4
USB 3.1:ano
Počet portů USB 3.1:1
USB-C:ano
Počet portů USB-C:3
Počet portů USB-C:1
DisplayPort výstup:ano
Počet DisplayPort výstupů:1
RJ-45 port:ano
Počet portů RJ-45:1
S/PDIF výstup:ano
Porty interní
Počet portů USB 3.0:1
Počet SATA III:6
Počet M.2 slotů:3
Počet PCIe 3.0 ×1:1
Počet PCIe 4.0 ×4:1
Počet PCIe 4.0 ×16:1
Počet PCIe 5.0 ×4:1
USB 3.0 header:ano
USB 2.0 header:ano
Počet konektorů USB 2.0:2
SATA III konektor (6 Gb/s):ano
M.2 konektor:ano
ARGB LED konektor:ano
RGB LED konektor:ano
Ostatní parametry
Distribuce:CZ
