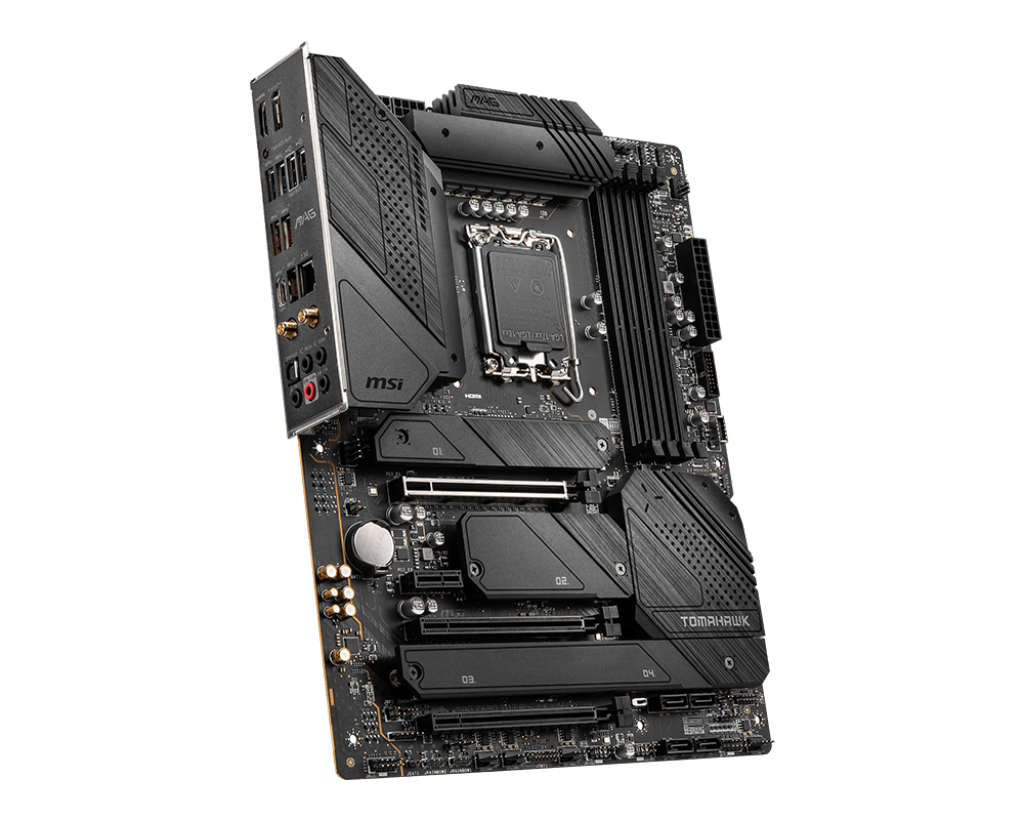

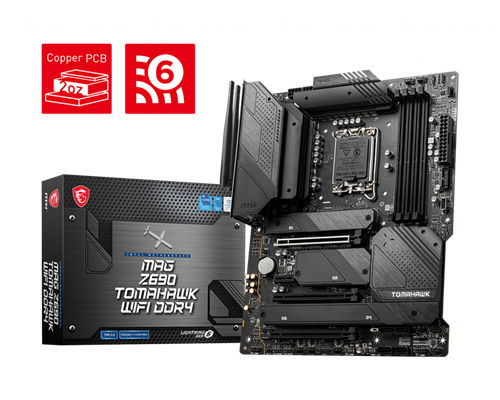

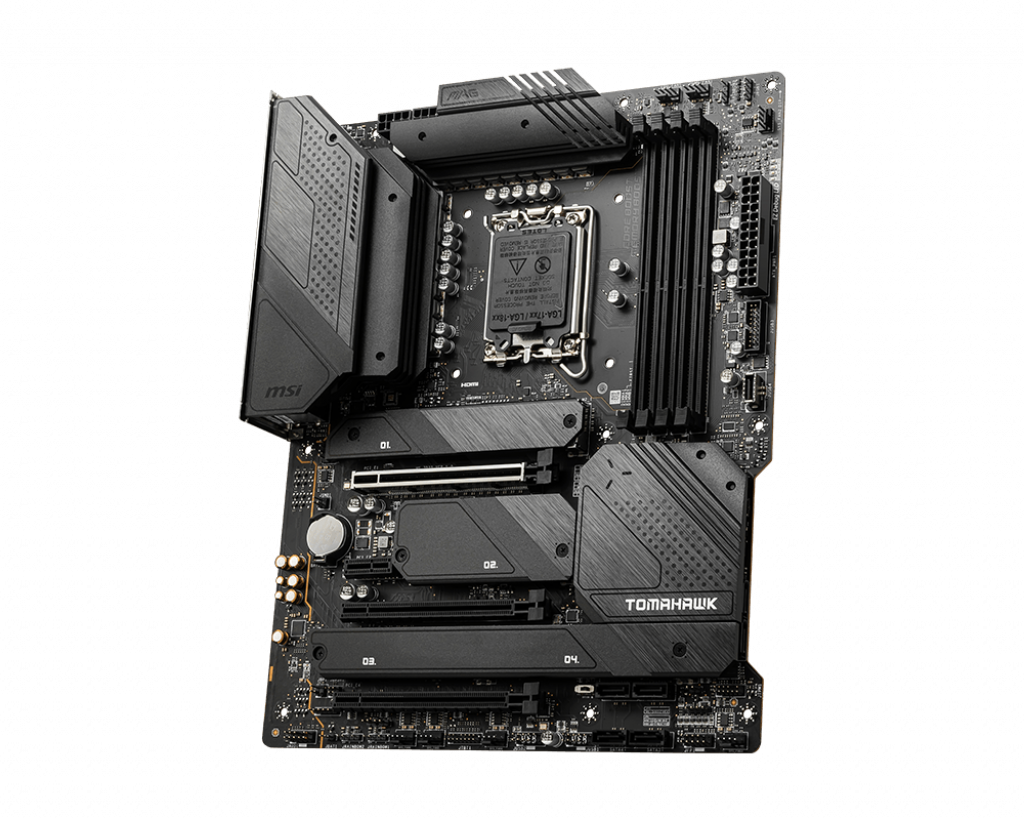

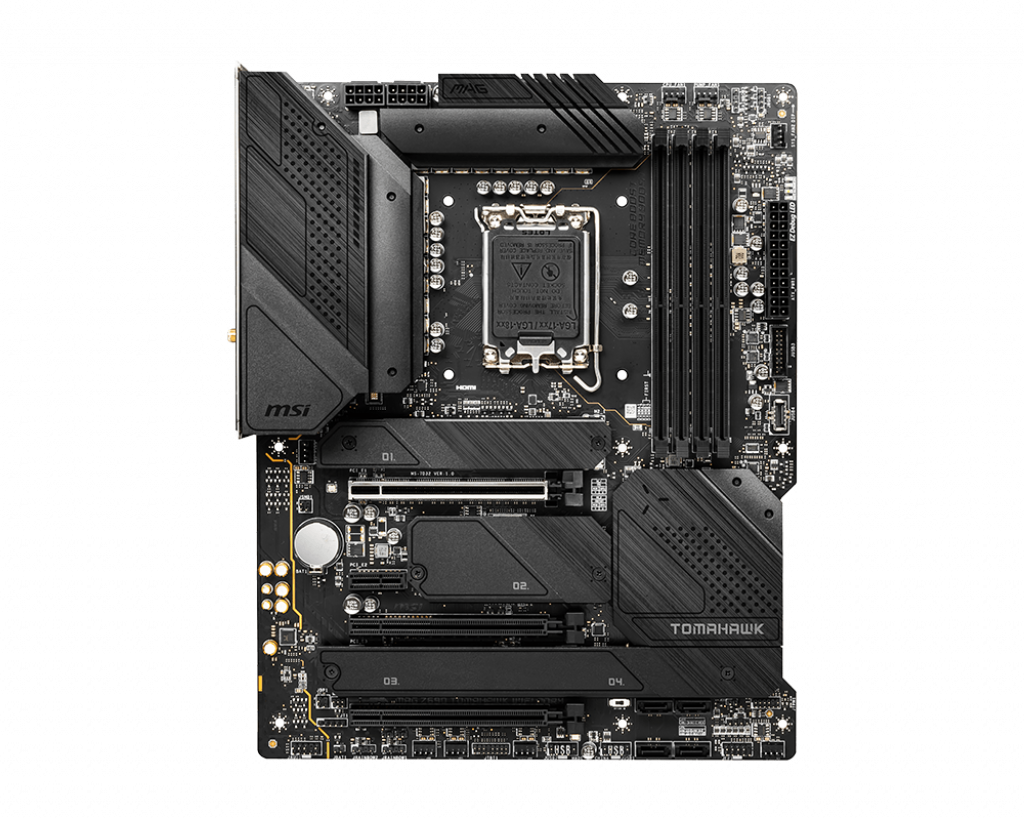

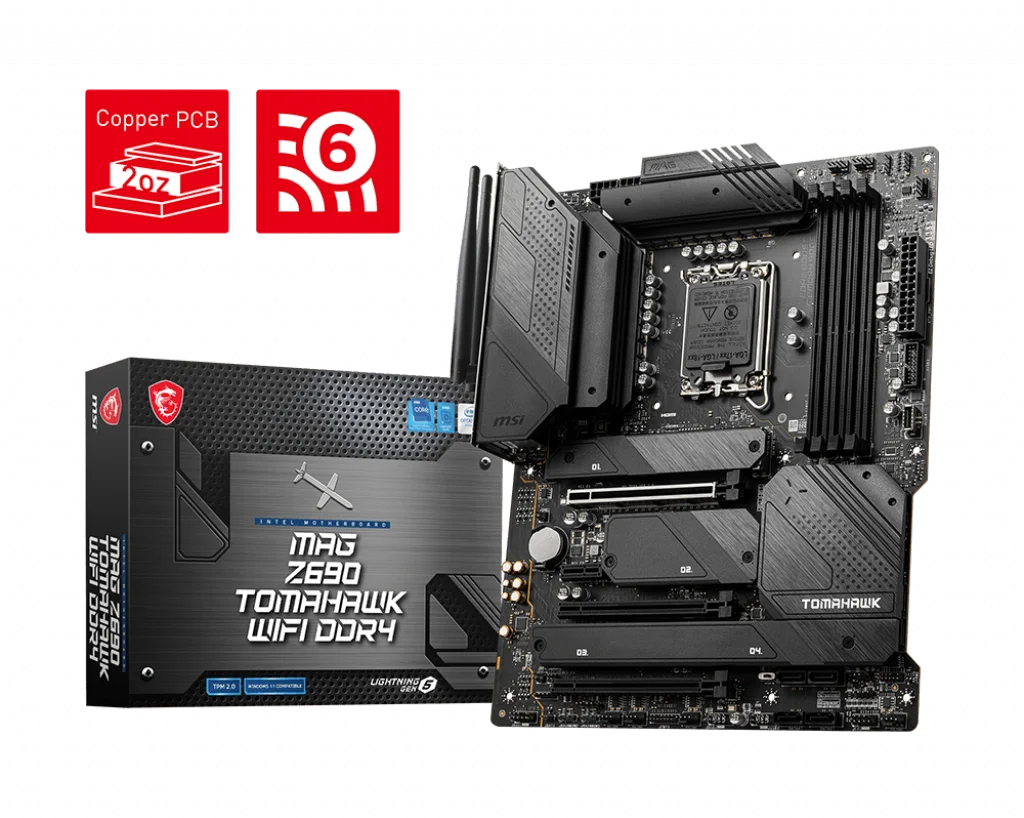

MSI MAG Z690 TOMAHAWK WIFI DDR4

Processor

• Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1
• Processor socket LGA1700
• Please go to msi.com to get the newest support status as new processors are released.

Chipset

• Intel® Z690 Chipset

Memory

• 4x DDR4 memory slots, support up to 128GB 1
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)

Max overclocking frequency:

• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile (XMP)
• Please refer to www.msi.com for more information on compatible memory.

Expansion Slot

• 3x PCIe x16 slots
• PCI_E1 (From CPU)
• Support up to PCIe 5.0 x16
• PCI_E3 (From Z690 chipset)
• Support up to PCIe 3.0 x4
• PCI_E4 (From Z690 chipset)
• Support up to PCIe 3.0 x1
• 1x PCIe 3.0 x1 slot (From Z690 chipset)

Multi-GPU

• Supports AMD® CrossFire™ Technology

Onboard Graphics

• 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
• 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
• Available only on processors featuring integrated graphics.
• Graphics specifications may vary depending on the CPU installed.

Storage

• 6x SATA 6Gb/s ports (From Z690 chipset)
• 4x M.2 slots (Key M)
• M2_1 slot (From CPU)
• Supports up to PCIe 4.0 x4
• Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 slot (From Z690 chipset)
• Supports up to PCIe 4.0 x4
• Supports 2242/ 2260/ 2280 storage devices
• M2_3 slot (From Z690 chipset)
• Supports up to PCIe 3.0 x4
• Supports up to SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• M2_4 slot (From Z690 chipset)
• Supports up to PCIe 4.0 x4
• Supports up to SATA 6Gb/s
• Supports 2242/ 2260/ 2280 storage devices
• Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset
• Supports Intel® Smart Response Technology for Intel Core™ processors

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

Intel® Z690 Chipset

• 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
• 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
• 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
• 1x USB 2.0 Type-A port on the back panel

Hub-GL850G

• 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)

Audio

• Realtek® ALC4080 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

• 1x Intel® I225V 2.5Gbps LAN controller

Wireless LAN & Bluetooth®

• Intel® Wi-Fi 6
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.2

Internal connectors

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connectors
• 6x SATA 6Gb/s connectors
• 4x M.2 slots (M-Key)
• 1x USB 3.2 Gen 2 10Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 6x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Clear CMOS jumper
• 1x TBT connector (supports RTD3)
• 1x Tuning Controller connector

LED Feature

• 1x EZ LED Control switch
• 1x 4-pin RGB LED connectors
• 3x 3-pin RAINBOW LED connectors
• 4x EZ Debug LED

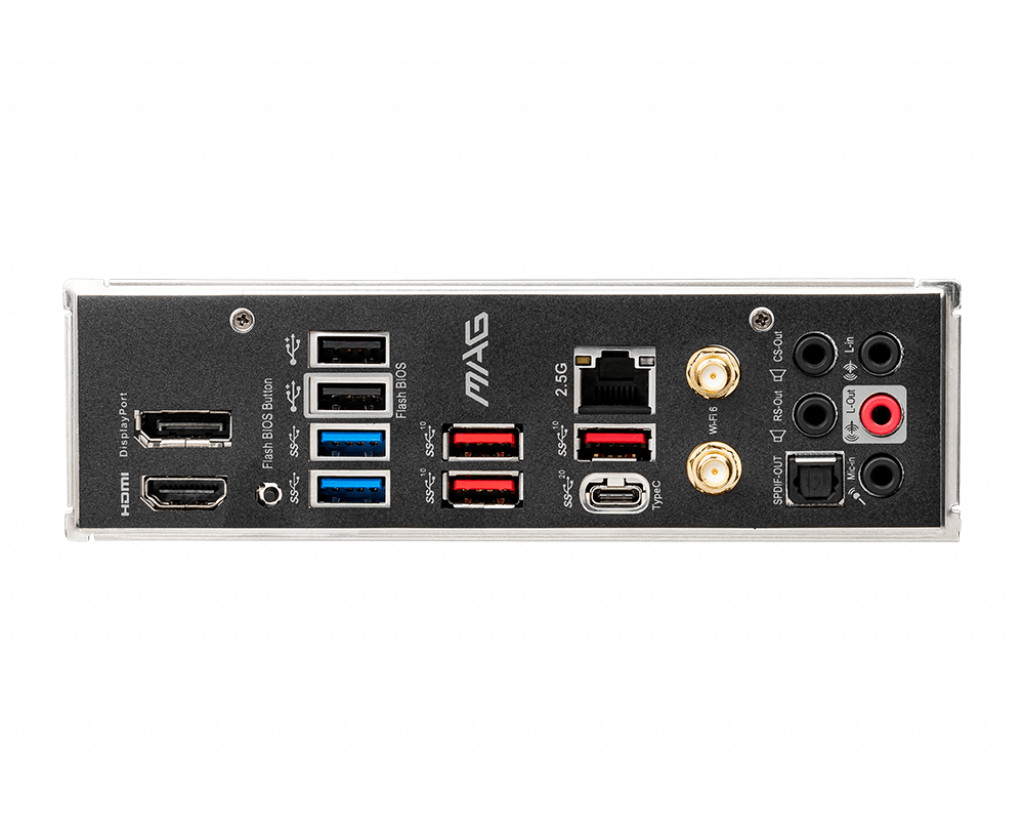

Back panel ports

• DisplayPort 1.4
• USB 2.0 Port
• USB 3.2 Gen 2 10Gbps Type-A
• 2.5G LAN Port
• Wi-Fi / Bluetooth Antenna
• HD Audio Connectors
• HDMI 2.1 Port
• Flash BIOS Button
• USB 3.2 Gen 1 5Gbps Type-A
• USB 3.2 Gen 2 10Gbps Type-A
• USB 3.2 Gen 2x2 20Gbps Type-C
• Optical S/PDIF OUT

Dimensions

• ATX Form Factor
• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
