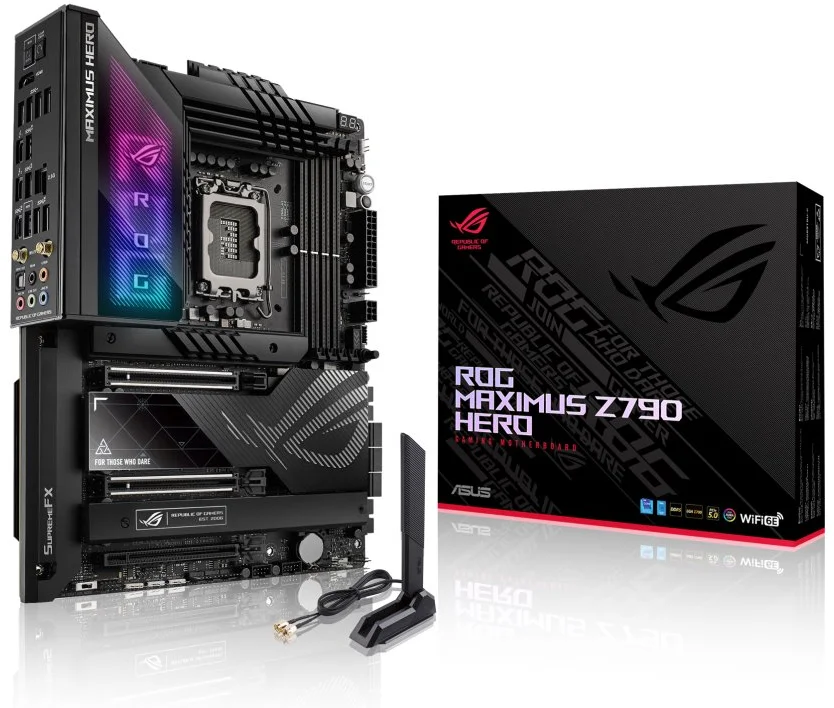

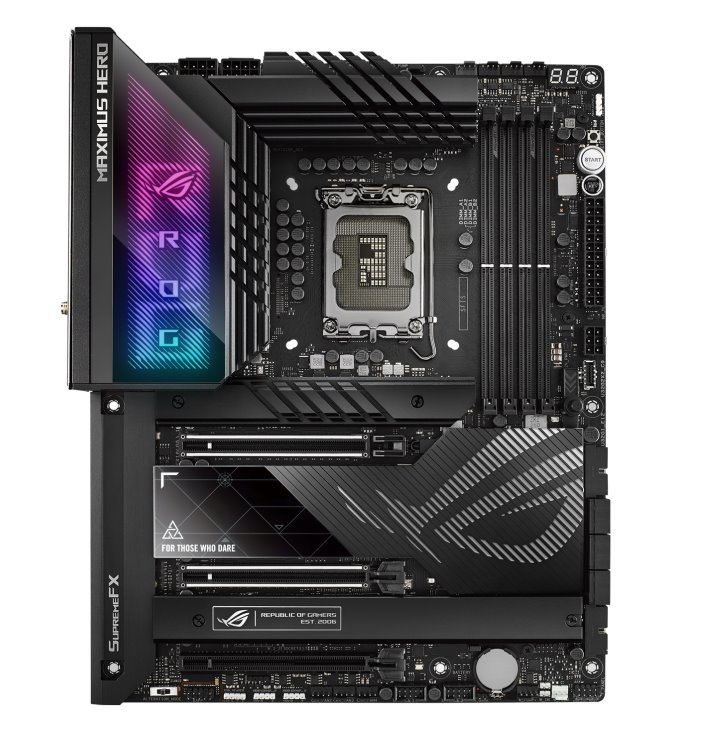

ASUS ROG MAXIMUS Z790 HERO

Základní deska Intel ® Z790 LGA 1700 ATX s 20 + 1 výkonovými stupni, DDR5, pět slotů M.2, slot PCIe ® 5.0 NVMe ® SSD na kartě Hyper M.2, PCIe 5.0 x16 SafeSlots s Q-Release, Wi-Fi 6E, dva porty Thunderbolt ™ 4, konektor na předním panelu USB 3.2 Gen 2x2 s funkcí Quick Charge 4+ až 60 W, přetaktování AI, chlazení AI II a osvětlení Aura Sync RGB Chipset: Intel Z790 Rozměrový formát: ATX Podpora pro procesory: 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Pozice na paměti: 4 x DIMM Podpora pro paměti: 4 x DIMM Max. 128GB DDR5 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) Max. velikost operační paměti: 128 GB Grafická karta: ne (1 x HDMI port + 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs) Zvuková karta: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Síťová karta: 1 x Intel 2.5Gb Ethernet Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 Rozšiřující sloty: Intel 13th & 12th Gen Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes) Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes) RAID řadič: PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10 SATA: 6 x SATA 6Gb/s ports M.2: Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode.) Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.) Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode) Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode) USB: zadní USB - celkem 12, přední USB - celkem 9 ZADNÍ 2 x Thunderbolt 4 ports (2 x USB Type-C) 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) PŘEDNÍ 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Interní porty: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® ) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x Start button 1 x ReTry button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x CPU Over Voltage jumper 1 x Alternative PCIe Mode switch Externí porty: 2 x Thunderbolt 4 USB Type-C ports 6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
