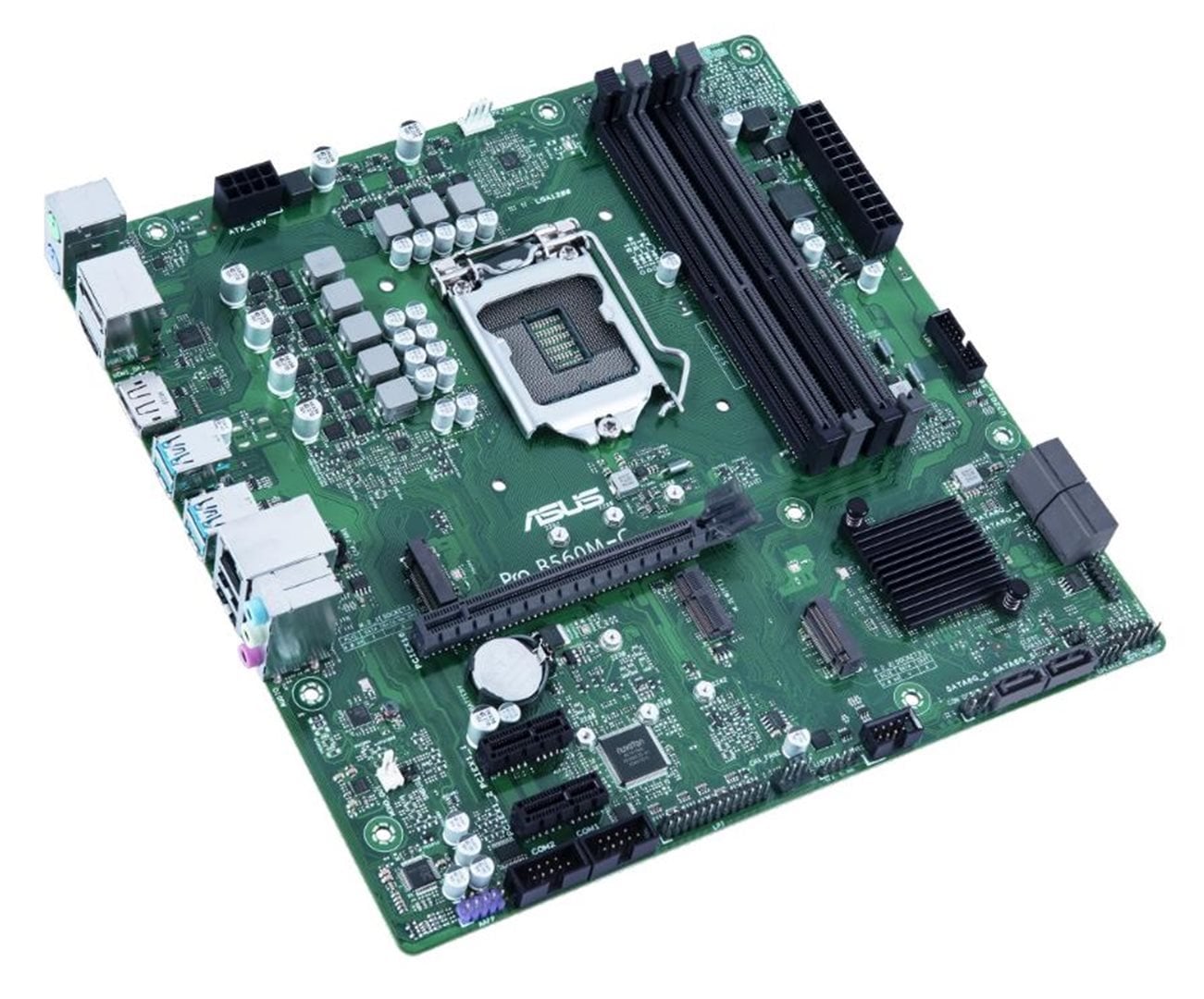

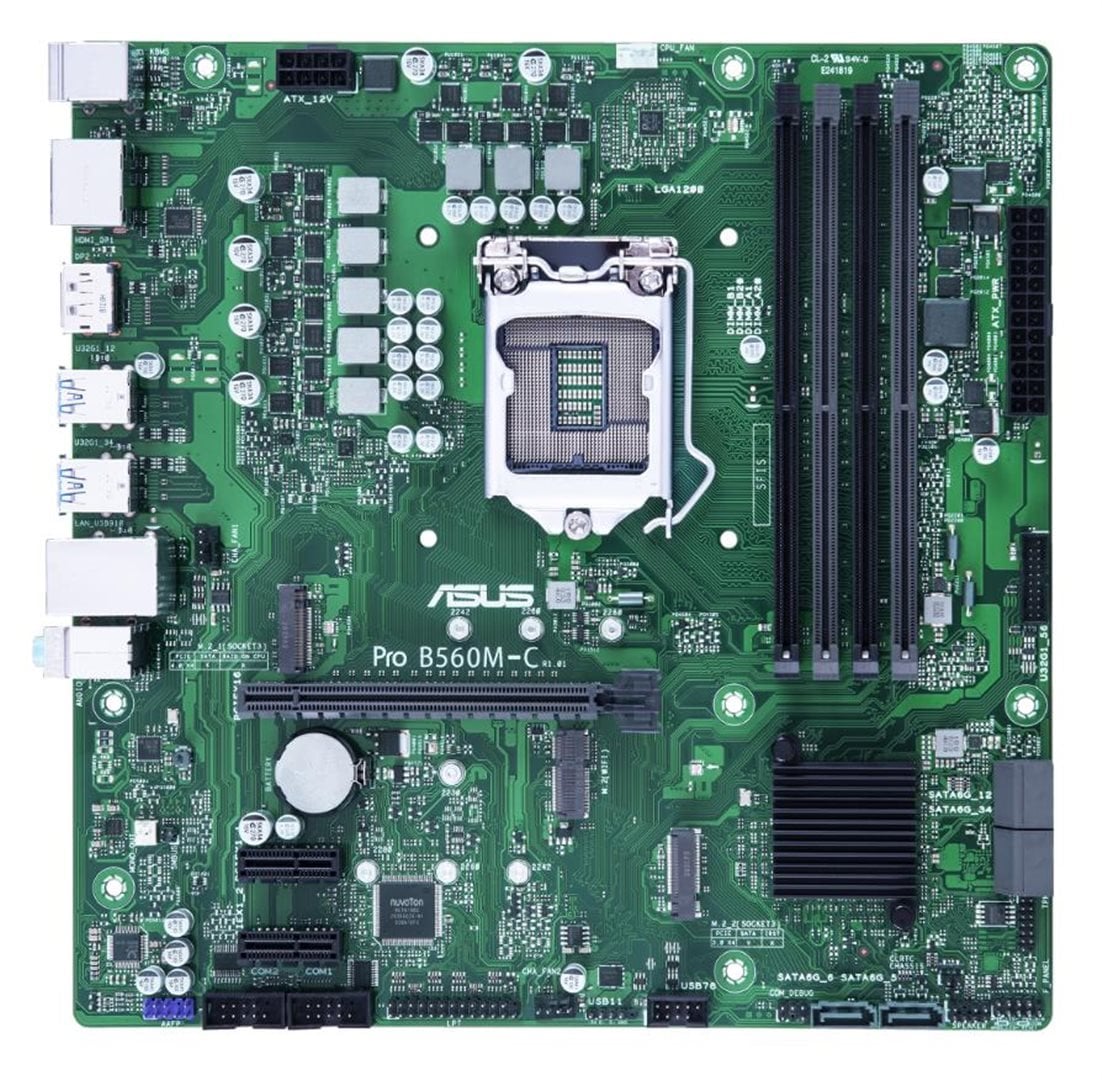

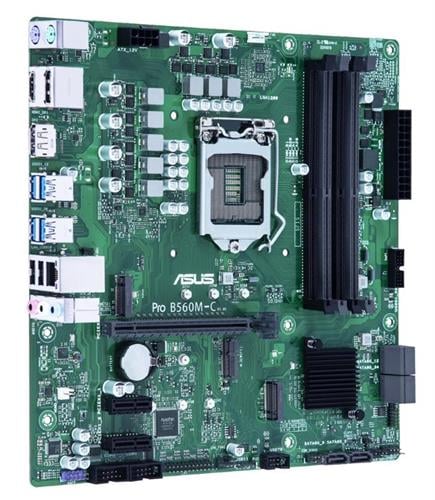

ASUS Pro B560M-C/CSM

Chipset: Intel® B560 Chipset Rozměrový formát: microATX Form Factor (244 mm x 244 mm) Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Patice procesoru: LGA 1200 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 4600(OC)/4400(OC)/4266(OC)/4000(OC)//3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 Dual Channel Memory Architecture Intel® Extreme Memory Profile (XMP) OptiMem Grafická karta: Integrated Graphics Processor (na základě procesoru) Zvuková karta: ALC887/897 Síťová karta: 1x Intel® I219-V 1Gb Ethernet Rozšiřující sloty: 1x PCIe 4.0/3.0 x16 slot (support x16 mode) 2x PCIe 3.0 x1 slots SATA: 6x SATA 6Gb/s ports M.2: M.2_1 slot (Key M), type 2242/2260/2280 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) USB: zadní USB porty ( celkem 6 ) 4x USB 3.2 Gen 1 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) přední USB porty ( celkem 5 ) 2x USB 3.2 Gen 1 ports 2x USB 2.0 ports 1x USB 2.0 port Interní porty: 1x 4-pin CPU Fan header 2x 4-pin Chassis Fan headers 1x 24-pin Main Power connector 1x 8-pin +12V Power connector 2x M.2 slots (Key M) 6x SATA 6Gb/s ports 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1x USB 2.0 header supports additional 2 USB 2.0 ports 1x USB 2.0 header supports additional 1 USB 2.0 port 1x Clear CMOS header 1x Chassis Intrude header 2x COM Port headers 1x Front Panel Audio header (AAFP) 1x COM debug header 1x LPT header 1x Mono-out header(with Amp IC) 1x SMBUS header 1x Speaker header 1x SPI TPM header (14-1pin) 1x 10-1 pin System Panel header Externí porty: 4x USB 3.2 Gen 1 ports (4 x Type-A) 2x USB 2.0 ports (2 x Type-A) 2x DisplayPort 1x HDMI port 1x M.2 slot (Key E) 1x Intel® I219V 1Gb Ethernet port 3x Audio jacks 1x PS/2 keyboard (purple) port 1x PS/2 mouse (green) port Obsah balení: 2x SATA 6Gb/s cables 1x I/O Shield 1x M.2 SSD screw package 1x M.2 Key E screw package 1x Support DVD 1x ACC Express Activation Key Card 1x User manual BIOS: 128Mb Flash ROM, UEFI AMI BIOS
