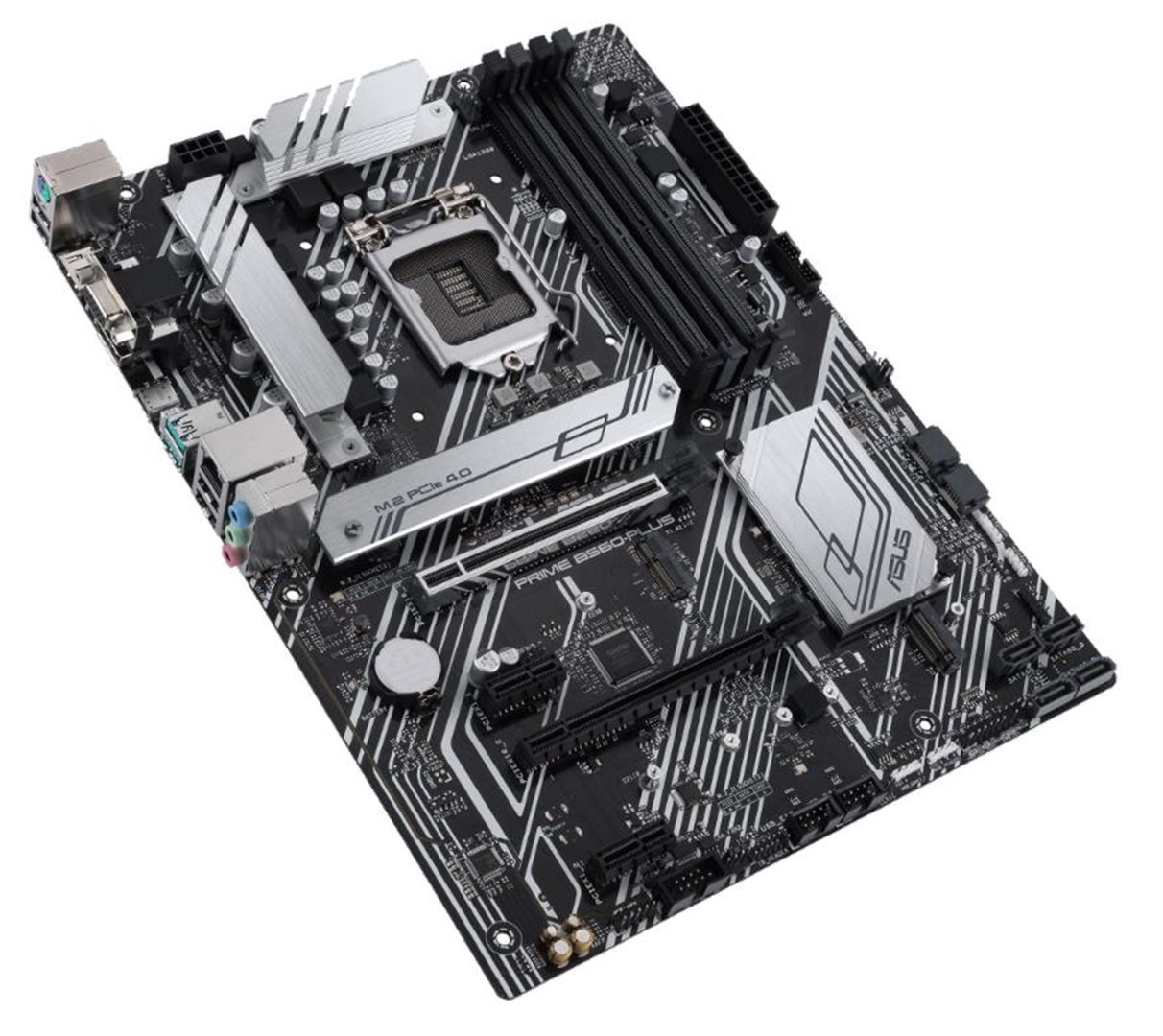

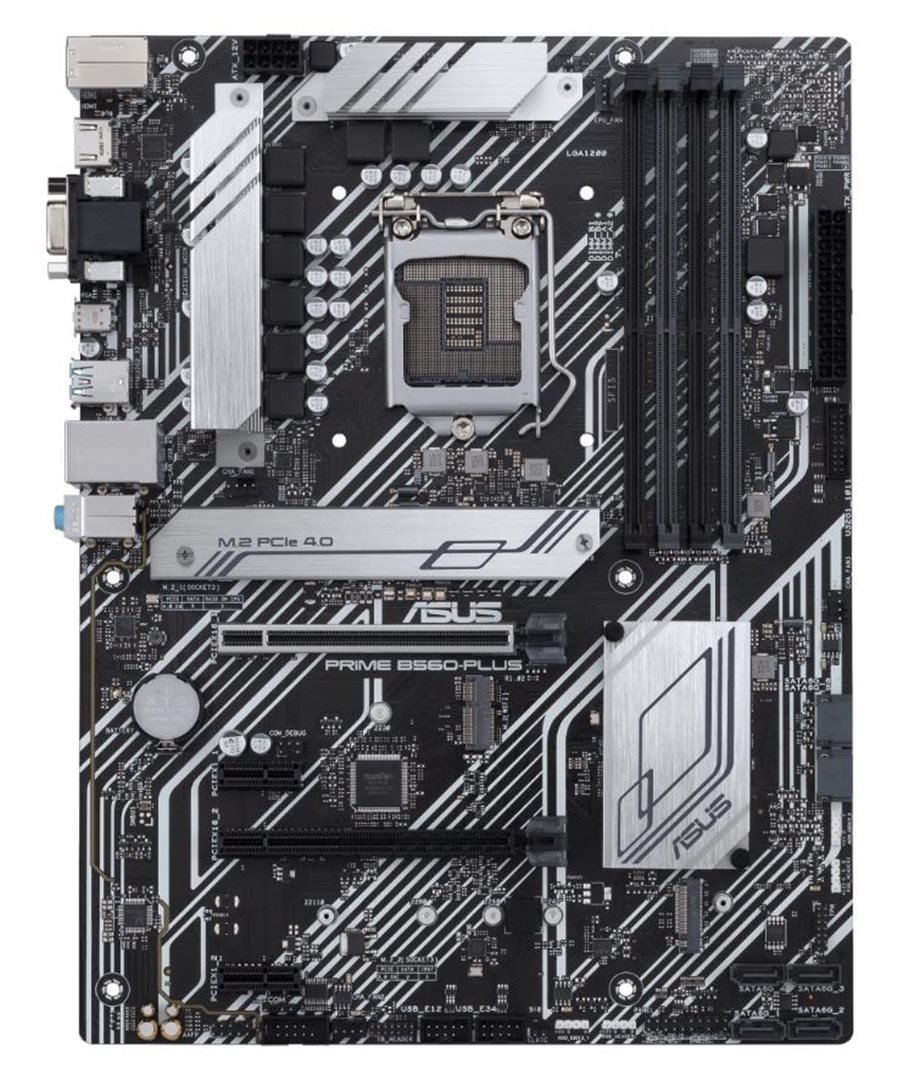

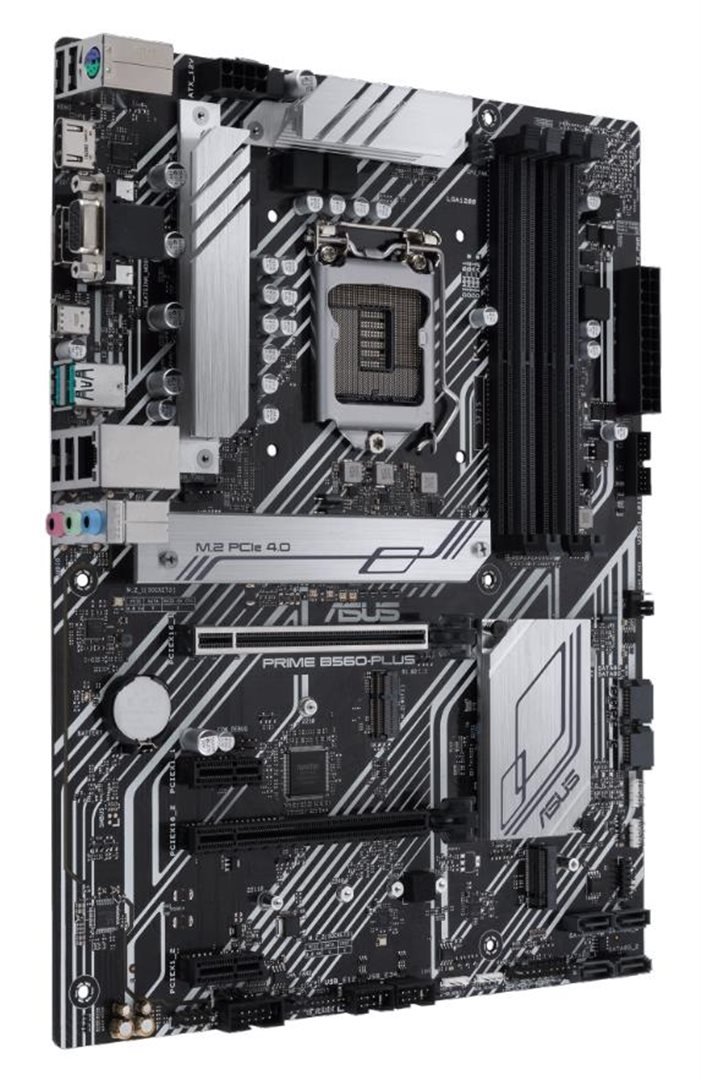

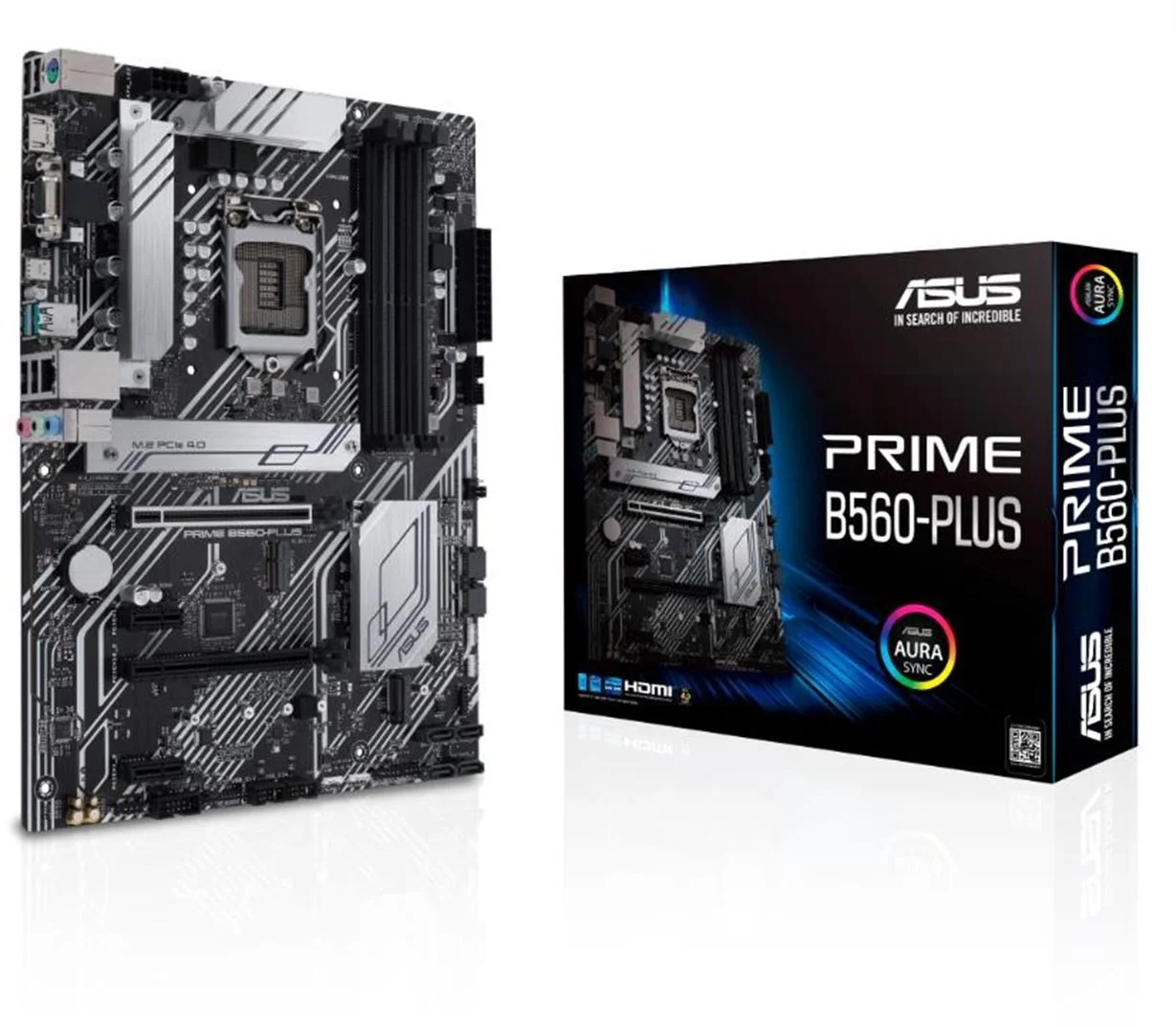

ASUS PRIME B560-PLUS

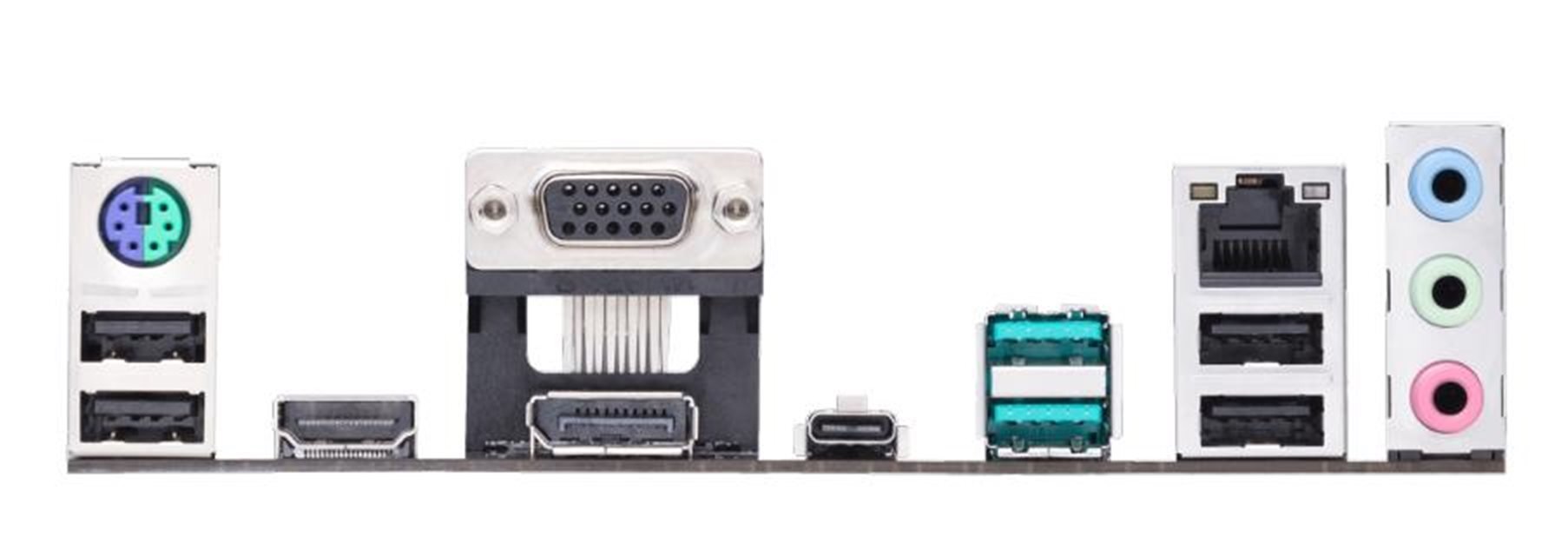

Po opravě CPU socketu (narovnání pinů). Chipset: Intel® B560 Chipset Rozměrový formát: ATX Form Factor (305 mm x 234 mm) Podpora pro procesory: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Patice procesoru: LGA 1200 Pozice na paměti: 4x DDR4 DIMM Podpora pro paměti: 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory Max.velikost operační paměti: 128 GB Podpora pro paměti typu: DDR4 Dual Channel Memory Architecture Intel® Extreme Memory Profile (XMP) ASUS OptiMem Grafická karta: Integrated Graphics Processor (na základě procesoru) Zvuková karta: Realtek ALC897 7.1-Channel High Definition Audio CODEC Síťová karta: 1x Intel® I219-V 1Gb Ethernet Rozšiřující sloty: 1x PCIe 4.0/3.0 x16 slot 1x PCIe 3.0 x16 slot (supports x4 mode) 2x PCIe 3.0 x1 slots SATA: 6x SATA 6Gb/s ports M.2: M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ) M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes) USB: zadní USB porty ( celkem 7 ) 2x USB 3.2 Gen 2 ports (2 x Type-A) 1x USB 3.2 Gen 1 port (1 x USB Type-C®) 4x USB 2.0 ports přední USB porty ( celkem 6 ) 2x USB 3.2 Gen 1 ports 4x USB 2.0 ports Interní porty: 1x TB Header (for add-on TB card) 1x 4-pin CPU Fan header 3x 4-pin Chassis Fan headers 1x 24-pin Main Power connector 1x 8-pin +12V Power connector 2x M.2 slots (Key M) 6x SATA 6Gb/s ports 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2x USB 2.0 headers support additional 4 USB 2.0 ports 2x AURA Addressable Gen 2 headers 2x AURA RGB headers 1x Clear CMOS jumper 1x COM Port header 1x Front Panel Audio header (AAFP) 1x S/PDIF out header 1x 20-3pin System Panel header with Chassis intrude function 1x SPI TPM header (14-1 pin) 1x M.2 slot (key E) 1x Thunderbolt 4 header Externí porty: 1x DP port 1x HDMI port 1x D-Sub port 3x Audio jacks 1x PS/2 Keyboard/Mouse combo port 1x Intel® I219-V 1Gb Ethernet port 4x USB 2.0 ports (4 x Type-A) 2x USB 3.2 Gen 2 ports (2 x Type-A) 1x USB 3.2 Gen 1 port (1 x USB Type-C®) Obsah balení: 2x SATA 6Gb/s cables 1x M.2 Rubber Package 1x IO Shield 1x M.2 SSD screw package 1x M.2 Key E screw package 1x Supporting DVD 1x User's manual BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
