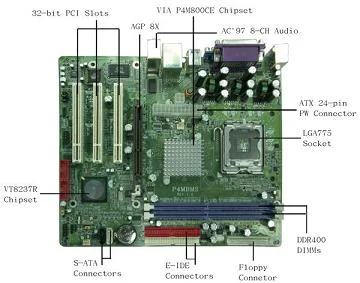

MB JETWAY P4MBMS s775 DDR,VGA,SATA,LAN,AUD,AGP8x,mATX

Podpora LGA 775 Socketu pro procesor Intel PentiumO 4, podporuje Prescott/Hyper-Threading CPU a 533/800MHz System Bus Frequency

Processor
LGA 775 Socket for FSB 800 / 533 / 400 MHz Intel® Pentium 4 With Hyper Threading Technology

Chipset
VIA® P4M800CE NorthBridge Chipset + VT8237R SouthBridge Chipset

Memory
2 * 184-pin DIMM Sockets for unbuffered DDR 400 / 333 SDRAM up to 2 GB

Expansion Slot
3 * 32-bit PCI Slots / 1 * AGP 8X

Storage
4 * Ultra DMA 133 / 100 / 66 / 33
Embedded VIA® VT8237R Chipset Supports 2 Serial ATA HDDs with RAID Functions.
upport RAID 0, RAID 1 (S-ATA)

Audio
VIA® VT1617A 6-Channel AC‘97 Audio CODEC

Ethernet LAN
VIA® VT6103 10 / 100 LAN PHY

USB
Embedded 8 * High Speed USB @ 480 Mbit / s

Special Features
Integrated VIA® S3 Graphics UniChrome Pro Integrated Graphics Processor
IMAGE IT!” System Backup Software and “ProMagicPLUS!” System Recovery System

Rear Panel I / O
4 * High Speed USB Connectors @ 480 Mbit / s
1 * D-Sub 15-pin VGA Connector
1 * SerialPort
1 * PS / 2 Mouse & 1 * PS/2 Keyboard
2 * RJ45 Connector
1 * Audio I / O

Internal I / O
2 * High Speed USB Connectors @ 480 Mbit / s for 4 USB 2.0 Ports
CPU / Chassis Fan Connectors
1 * 12V 4-pin ATX Power Connector and 1 * 24-pin ATX Power Connector
CD / AUX Audio in
1* SerialPort 9-pin Block

BIOS
Award 4 MB Flash ROM

Form Factor
Micro ATX Form Factor

Více informací naleznete na: http://www.jetway.com.tw/evisn/product/p-4/p4mbms/p4mbms.htm
