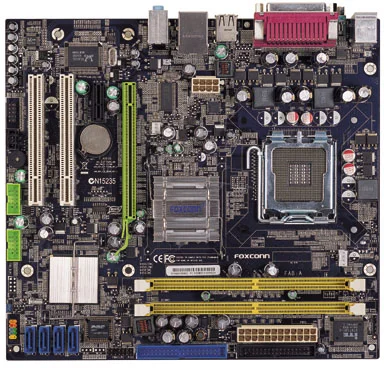

Foxconn 945GZ7MC s775 DDR2 VGA/256MB ATA 4xSATA RAID LAN mATX

Processor: Intel® Core™ 2 Duo, Pentium® D, Pentium® EE, Pentium® 4 and Celeron D processors, Socket T (LGA775)
Chipset: Intel® 945G + Intel® ICH7R
Front Side Bus: 533/800/1066MHz FSB
Memory: Dual channel DDR2 400/533/667 x 2 DIMMs, Max 4GB
VGA on Die: Integrate
Expansion Slots: 1 x PCIe x16, 1 x PCIe x1, 2 x PCI
IDE: 1x PATA 100
Serial ATA(SATA)/RAID: 4 x SATA II with RAID 0, 1, 0+1, 5
Audio: 5.1 channel, Realtek ALC 861 (HDA)
LAN: 10/100 LAN, Realtek RTL8110SC PCI
IEEE1394: N/A
Back Panel I/O Ports:
1 x PS/2 keyboard
1 x PS/2 mouse
1 x parallel
1 x RJ45 + USB 2.0
2 x USB 2.0
1 x Serial
1 set 5.1 channel Audio jacks (3 jacks)
1 x VGA port
Internal I/O Connectors:
2 x USB 2.0 headers, support 4 ports
1 x Speaker (reserve)
1 x IrDA header
1 x Intruder
1 x CD IN header
1 x Intel Azalia Header
1 x Front panel header
1 x S/PDIF out header(reserve)
1 x buzzer
BIOS Features: FWH 4MB, ACPI 2.0b, APM 1.2, PnP 1.0a, SMBIOS 2.3
Support CD: Drivers, DirectX, Adobe Reader, SuperUtilities, Norton Internet Security
Standards/Manageability: PCI 2.3, USB2.0, DMI 2.0
Special Features: Dual Core, SuperRecovery, SuperBoot, SuperBIOS-Protect, SuperLevel, SuperStep, SuperLogo, SuperUpdate
Form Factor: Micro ATX (9.6” x 8.8”)
