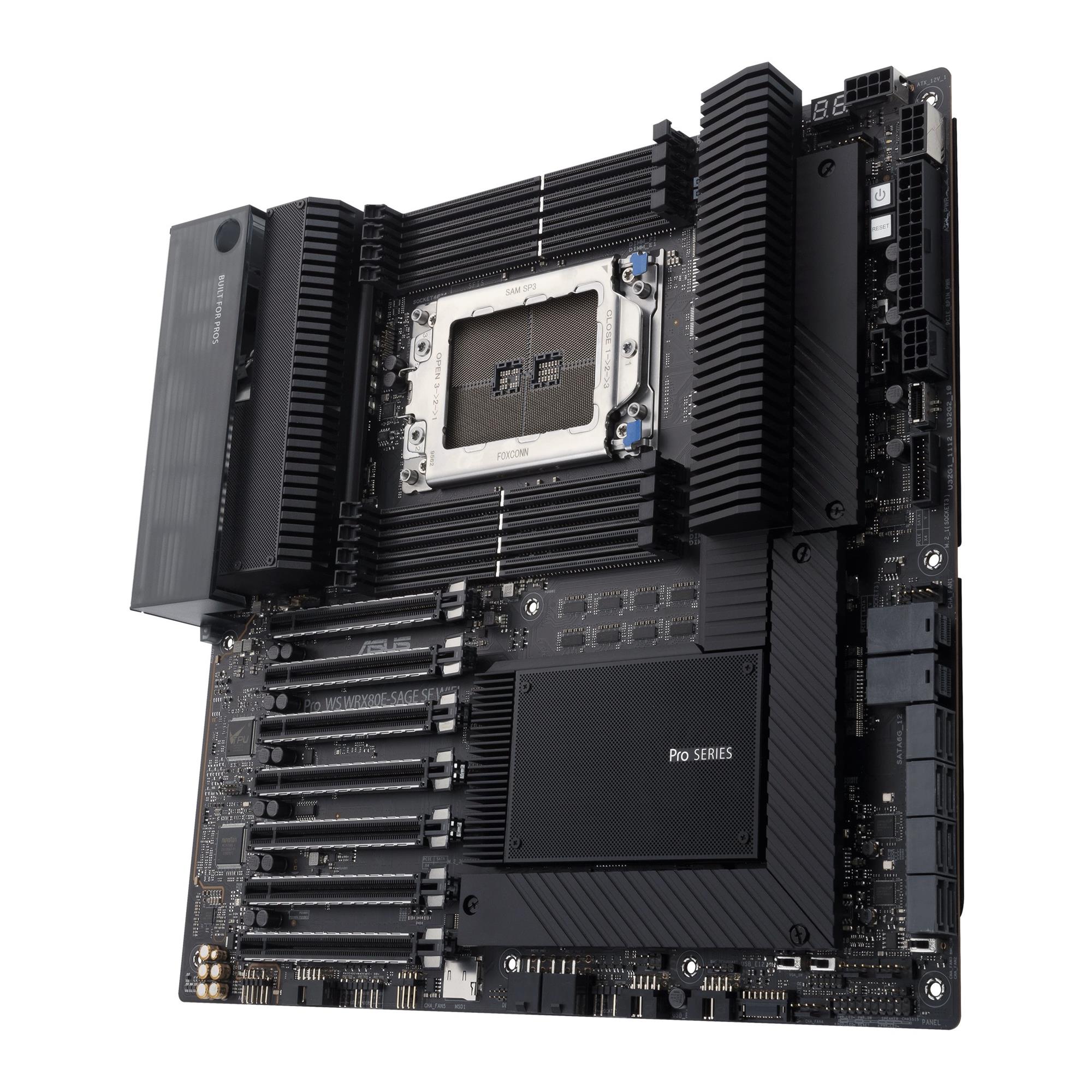

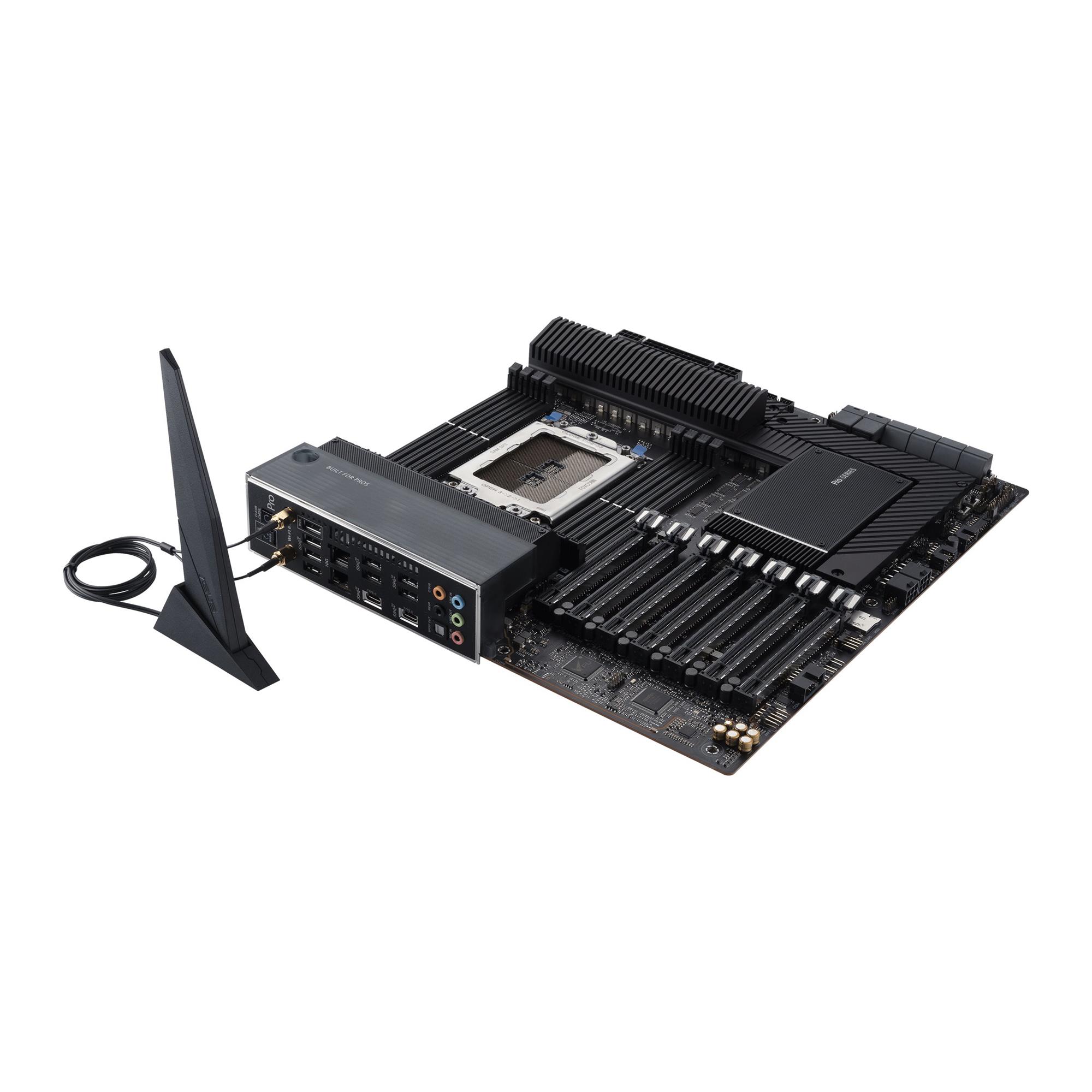

ASUS Pro WS WRX80E-SAGE SE WIFI

AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages Chipset: AMD WRX80 Chipset Rozměrový formát: Extended ATX Form Factor (309.8 mm x 330.2 mm) Podpora pro procesory: AMD® Ryzen™ Threadripper™ Pro Processors Patice procesoru: WRX8 socket Pozice na paměti: 8x DDR4 Podpora pro paměti: 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory Max.velikost operační paměti: 2048 GB Podpora pro paměti typu: DDR4 8 Channel Memory Architecture Grafická karta: Ne Multi GPU: Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology Zvuková karta: Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC Síťová karta: Intel® X550-AT2 dual 10Gb Ethernet 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Bluetooth v5.2 Rozšiřující sloty: 7x PCIe 4.0/3.0 x16 slot(s) RAID řadič: Ano SATA: 8x SATA 6Gb/s ports M.2: 1x M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 1x M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 1x M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) USB: zadní USB porty ( celkem 10 ) 1x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 9x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®) přední USB porty ( celkem 7 ) 1x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®) 2x USB 3.2 Gen 1 ports 4x USB 2.0 ports Interní porty: 1x 4-pin CPU Fan header(s) 1x 4-pin CPU OPT Fan header(s) 6x 4-pin Chassis Fan header(s) 1x VRM heatsink Fan header 1x Chipset Fan header 1x 24-pin Main Power connector 2x 8-pin +12V Power connector 2x 6-pin PCIe Graphics Card connector 1x 8-pin PCIe Power connector 3x M.2 slots (Key M) 8x SATA 6Gb/s ports 2x U.2 slots 1x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 1x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports 1x BMC switch 1x IPMI switch 1x Messange LED header 1x Micro SD card socket 2x LAN LED header(s) 1x Location LED header 1x Location button header 1x PSU_SMB header 1x SMART_PSU switch 1x VGA switch 1x VGA header 1x VPP_I2C header 1x COM Port header 1x FlexKey button 1x Front Panel Audio header (AAFP) 1x SPI TPM header (14-1pin) 1x Start button 1x 20-3 pin System Panel header with Chassis intrude function 1x RTC Battery header 1x Thermal Sensor header Externí porty: 1x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 9x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®) 1x ASUS Wi-Fi Module 2x Intel® X550-AT2 dual 10Gb Ethernet ports 5x Audio jacks 1x Optical S/PDIF out port 1x BIOS FlashBack™ button 1x Clear CMOS button Obsah balení: 6x SATA 6Gb/s cables 1x VGA cable 1x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1x Hyper M.2 X16 Gen 4 Card 3x M.2 Rubber Package(s) 3x M.2 SSD screw package(s) 1x Q-connector 1x Support DVD 1x User manual BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
